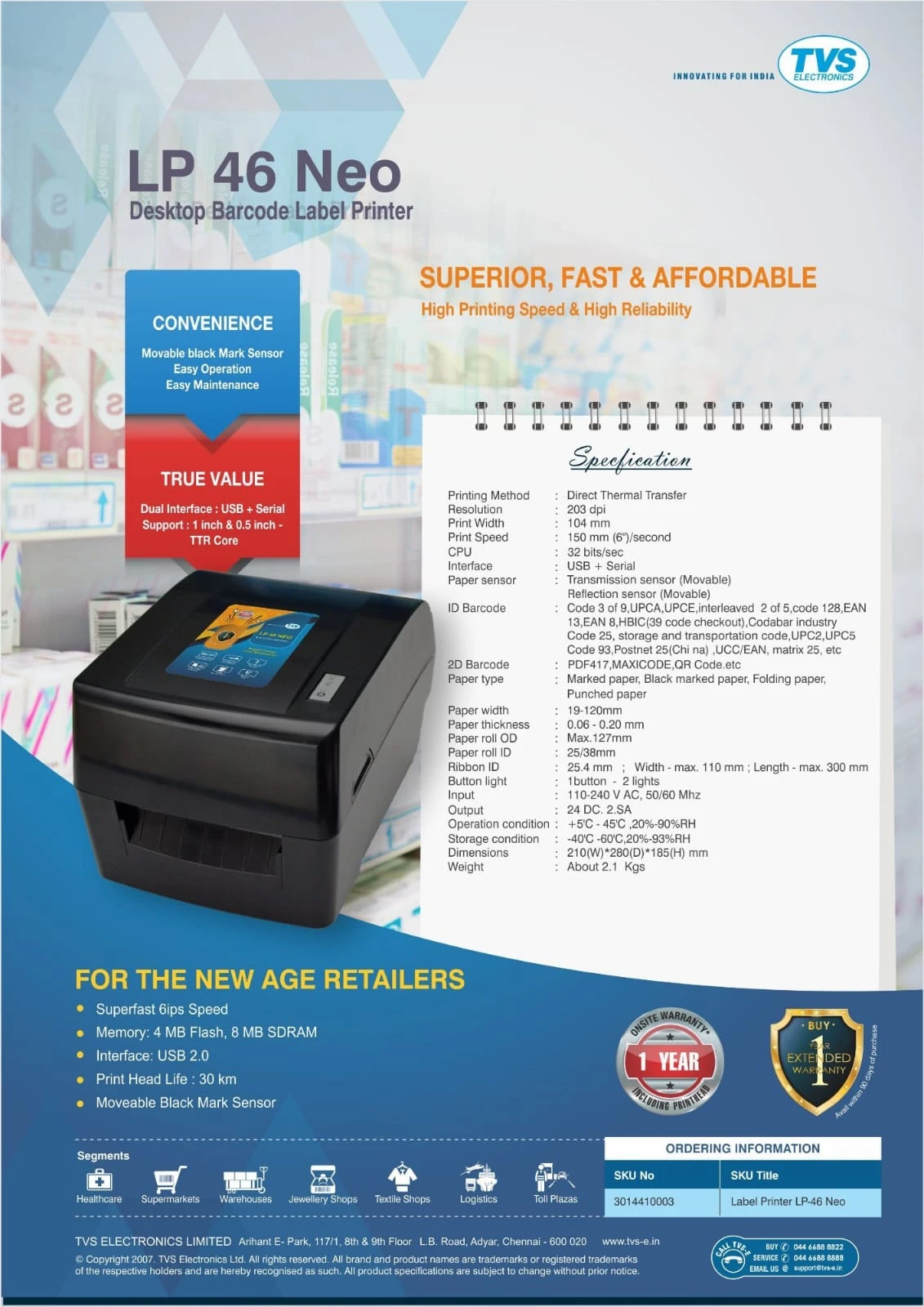

SPECIFICATIONS:

Printing Method

Thermal Line Printing – Direct Thermal & Thermal Transfer

Resolution

203 DPI

Print Speed

Max. 150 mm/s

Print width

Max 108 mm

CPU

32 bit RISC CPU

Interface

USB + serial

Paper Sensor

Transmission sensor removable, Reflection sensor removable

1D Barcode

Code 3 of 9, UPCA,UPCE, Interleaved 2 of 5, Code 128,EAN 13, EAN 8, HBIC39 code with check out,codabar industry CODE 25,storage and transportation code, UPC2,UPC5, Code 93, UCC/EAN, Matrix 25, Postnet code, etc

2D Barcode

PDF417, MAXICODE, OR code, etc

Paper Type

Marked paper, Black Marked paper, Folding paper, notched paper

Paper Width

19~120 mm

Paper Thickness

0.060.20 mm

Paper Roll OD

Max 27 mm

Paper Roll ID

25/38 mm

Ribbon Width

Max.100 mm

Ribbon Length

Max. 300 mm

Ribbon ID

25.4 mm

Button, Light

1 button,2 lights

Input Power

110240V AC. 50/60 Hz

Output Power

24 DC, 2.5 A

Operation condition

5°C – 45°C, 20% – 90% RH

Storage Condition

40°C – 60°C, 20% – 93% RH

Dimensions

210W * 280D * 185H mm

Weight

About 2.1 Kg

4 inch, 203 DPI resolution

Speed: 6 inches per sec

High Ribbon Capacity of 300 meters

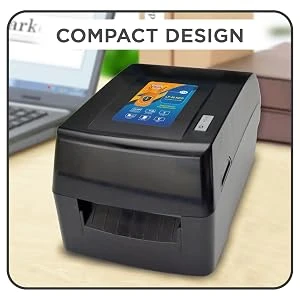

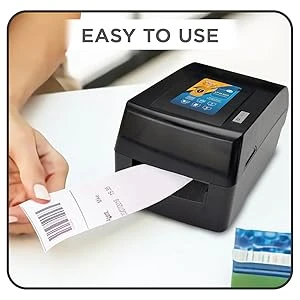

Compact & user friendly

USB + Serial
