SPECIFICATIONS:

Print method

Thermal/Thermal transfer

Resolution

203DPI | 300DPI

Print width

108mm(Max.) | 106mm (Max.)

Print speed

152mm/s (Max.) | 102mm/s(Max.)

Memory:SDRAM

32MB

Flash

16MB(64MB optional)

Sensor

Photoelectric sensor

TPH temperature detection

Thermistor

TPH position detection

Microswitch

Interface

Standard

USB port

Optional: RS232 serial port, Ethernet, Bluetooth, WiFi (Bluetooth or WiFi)

CPU

32bit RISC MCP

Barcodes

1D

Code39, Code93, Codabar,Code128 (Subsets A, B, and C), EAN-13,EAN-8,UPC-A, UPC-E, UP­C/EAN Extensions, Planet Code, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, G51 Data Bar(RSS)

2D

PDF 417,MicroPDF417,QR Code, DataMatrix, MaxiCode, GS1 Composite

Character enlargement/rotation

Rotate (0°, 90°, 180°, 270°) Enlarge (1-10x)

Vector fonts support stepless scaling

Character set

Built in 7 dot matrix fonts and 1 vector font. Support users to download dot matrix fonts and vector fonts

Graphical

Binary non-format bitmap, HEX, PCX, BMP and IMG can be download to FLASH, RAM

Paper type

Continuous paper, marking paper, label paper, perforated paper

Paper width

118mm (Max.)

Paper roll OD (Max.)

127mm (5 inch)

Paper roll ID

25.4mm (1 inch) / 38mm (1.5 inch)

Paper out

Tear off/ Rewind/ Peel off (optional)/ Cut (optional)

Paper thickness

0.06-0.25mm

Ribbon length

300m (Max.)

Ribbon ID

12.7mm/25.4mm

Button, Indicators

1 button, 2 indicators

Input

100-240V AC, 50-601-b

Output

24V DC, 2.5A

Operation conditions

5-45°C, 20 – 90%RH(40°C)

Storage conditions

-40-60°C, 20 – 93% RH(40°C)

Dimensions

280mm (L) x 218mm (W) x 180mm (H)

Weight

About 2.3kg

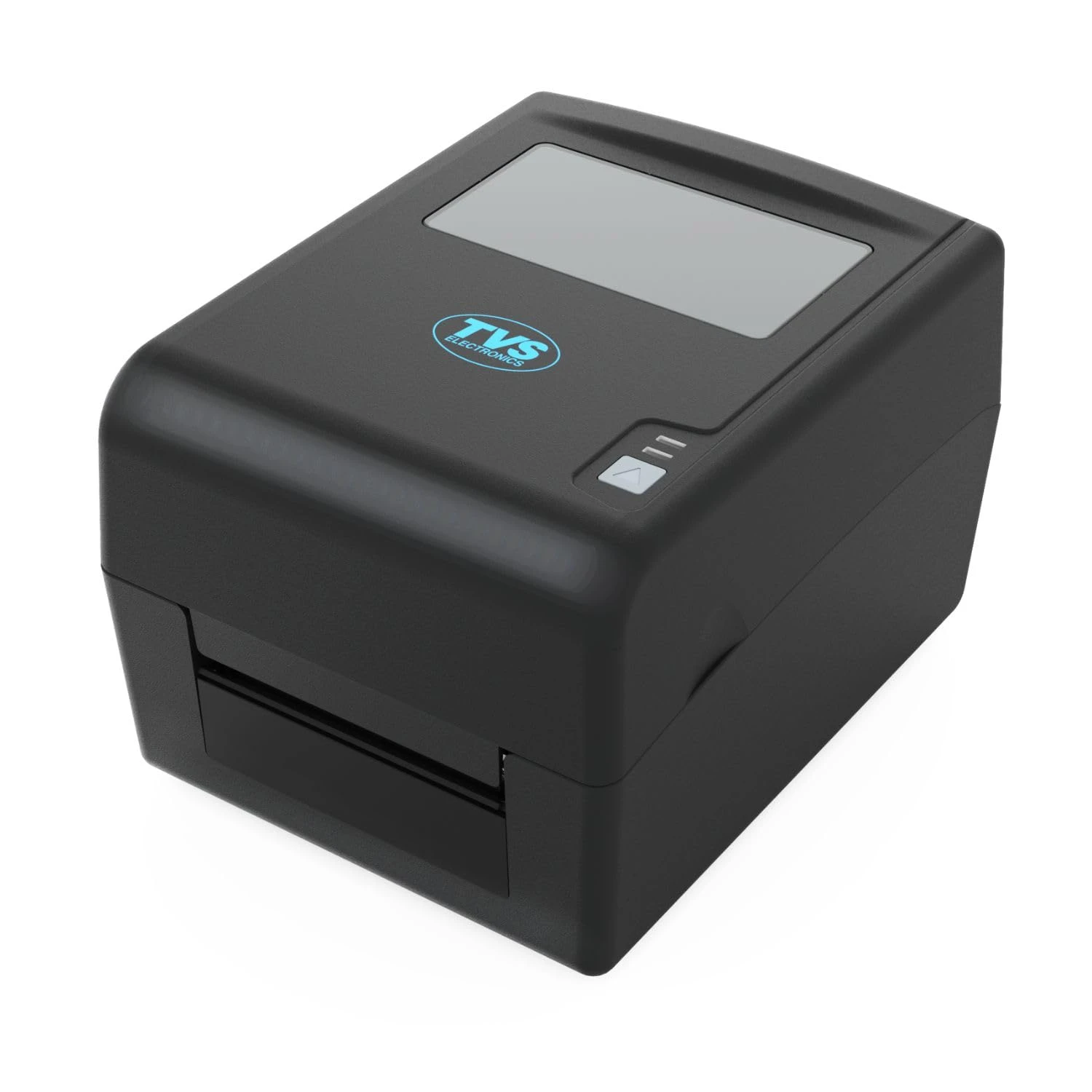

FEATURES: 4 inch, 203 DPI resolution

Speed: 6 inches per sec

16 MB Flash Memory & 32 MB SDRAM

Compact & transparent window design

USB
