General Information

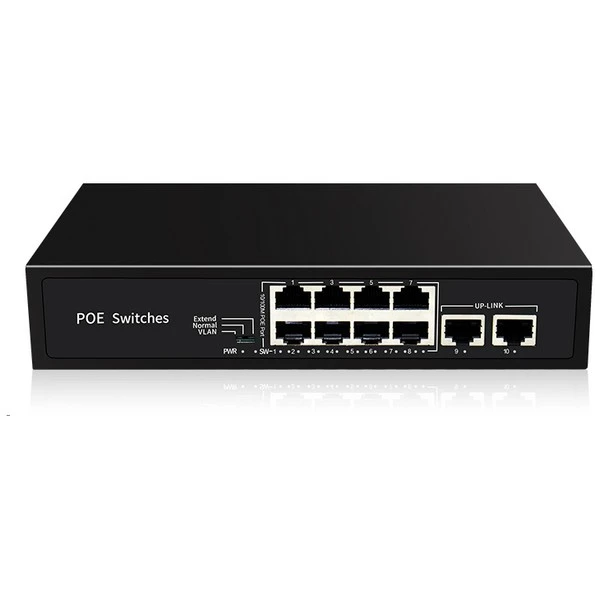

Product Type: PoE Network Switch

Ports: 8 Channel PoE + 2 Uplink Ports

Speed: Full Gigabit Ethernet

Application: CCTV IP Camera, Networking & Surveillance

Ports & Interface

PoE Ports: 8 × RJ45 (10/100/1000 Mbps)

Uplink Ports: 2 × RJ45 Gigabit (Non-PoE)

Total Ports: 10 Ports

PoE Standard

PoE Protocol: IEEE 802.3af / IEEE 802.3at

PoE Power Output per Port: Up to 30W

Total PoE Power Budget: 120W (Model Dependent)

Power Supply: Built-in / External Adapter (As per Model)

Performance

Switching Capacity: 20 Gbps

Packet Forwarding Rate: 14.88 Mpps

MAC Address Table: 2K / 4K Support

Transmission Mode: Store & Forward

Network Features

Plug & Play Installation

Auto MDI/MDIX Support

VLAN Mode Support (Optional)

Extend Mode Support (Up to 250m CCTV Transmission)

CCTV Surveillance Features

Ideal for IP Cameras, NVR Systems

Stable Power Delivery for 8 Cameras

Supports HD Video Streaming without Lag

Lightning & Surge Protection

Protection & Safety

ESD Protection: ±8KV

Surge Protection: 6KV

Short Circuit Protection: Yes

Overload Protection: Yes

Operating Conditions

Working Temperature: 0°C to 55°C

Storage Temperature: -20°C to 70°C

Humidity: 10% to 90% Non-Condensing

Package Includes

8 Port Gigabit PoE Switch

Power Adapter / Power Cable

User Manual
